mf6Voronoi Studio: Graphical User Interface for MODFLOW 6 Voronoi Mesh Generation

Developed by: An Ho Taylor

mf6Voronoi Studio is an intuitive, cross-platform graphical user interface (GUI) designed to bring the capabilities of the mf6Voronoi Python package into an interactive desktop application. It simplifies the creation and refinement of unstructured Voronoi grids for MODFLOW 6 (DISV) models without requiring users to write Python scripts.

Download mf6Voronoi Studio

Key Features

Interactive GIS Mapping: Load, view, and inspect model boundaries and geospatial vector files directly within a responsive graphical canvas.
No-Code Mesh Design: Easily configure global grid parameters, maximum cell sizes, and refinement growth factors using visual input controls.
Layer-Based Refinement Management: Interactively assign specific refinement criteria to points, lines, or polygons representing wells, rivers, faults, or mine pits.

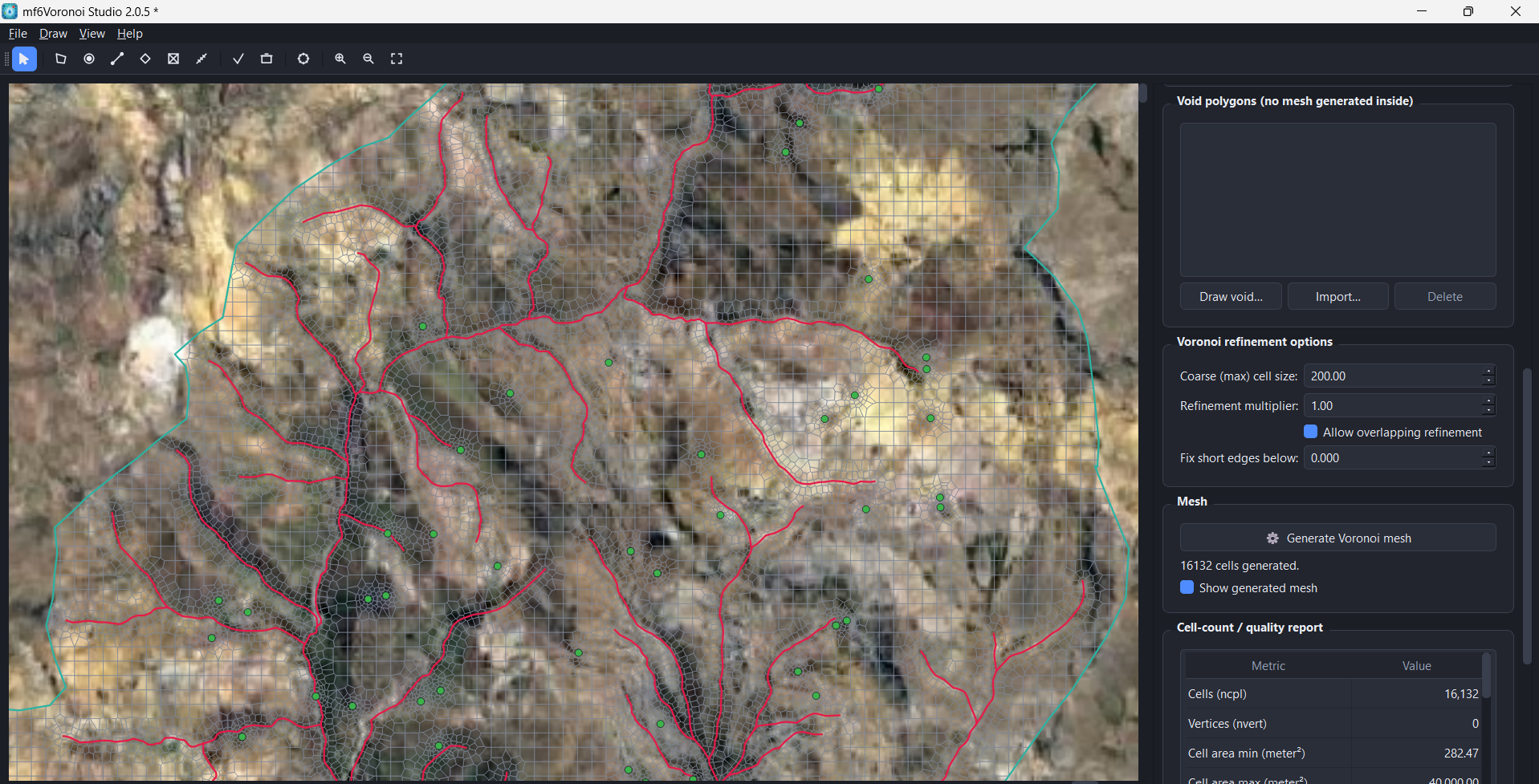

Real-Time Mesh Generation & Preview: Build and inspect Voronoi grids directly inside the interface prior to exporting.
Direct MODFLOW 6 & GIS Export: Seamlessly generate ready-to-use MODFLOW 6 DISV package files and export mesh geometries back to ESRI Shapefiles for further GIS inspection.

Download & Installation

The desktop application is available for Windows platforms:

Download mf6Voronoi Studio v3.0.1 for Windows (.exe)

Quick Installation Steps:

Download the installer package using the link above.
Run mf6VoronoiStudio-3.0.1-Setup.exe and follow the setup wizard prompts.
Launch mf6Voronoi Studio from your Start menu or Desktop shortcut.

How It Works

Import Geospatial Layers: Load your shapefiles containing model boundaries, river networks, and local refinement areas.
Define Grid Parameters: Set the base grid resolution alongside refinement multipliers to manage progressive cell transitions.
Generate Unstructured Mesh: Click to calculate the Delaunay triangulation and dual Voronoi tessellation.
Export Results: Save the generated mesh as an ESRI Shapefile or export the geometry definition directly into your FloPy script or MODFLOW 6 project.

Documentation & Source Code

GitHub Repository: taylorc11/mf6voronoi-studio on GitHub
Explore source code, submit feedback, and follow desktop application updates.

Comprehensive Tutorials Collection

For practical step-by-step guides on applying Voronoi grid discretizations to real-world groundwater modeling problems (covering hydrogeology, mining dewatering, and coastal simulations), visit our dedicated tutorial repository:

Comprehensive MODFLOW 6 and mf6Voronoi Tutorials Collection
